Collet Chuck Manufacturers in India
ER collet chucks for CNC machining.
Arris Tooling is one of the leading collet chuck manufacturers in India, supplying high-precision ER collet chucks for CNC machining centers worldwide. With over 17 years of manufacturing expertise, we serve OEMs, machine tool distributors, and industrial clients across 25+ countries.
Our ER collet chucks are engineered for heavy-duty machining applications requiring uniform clamping force, minimal runout, and high geometric accuracy. Manufactured with tight tolerances and superior surface finishing, our products are compatible with multiple ER sizes and nut types, ensuring flexibility across BT, HSK, CAT, SK, and ISO interfaces.
As a globally recognized exporter, we supply precision collet chucks to North America, Europe, the Middle East, Japan, and Asia-Pacific markets.

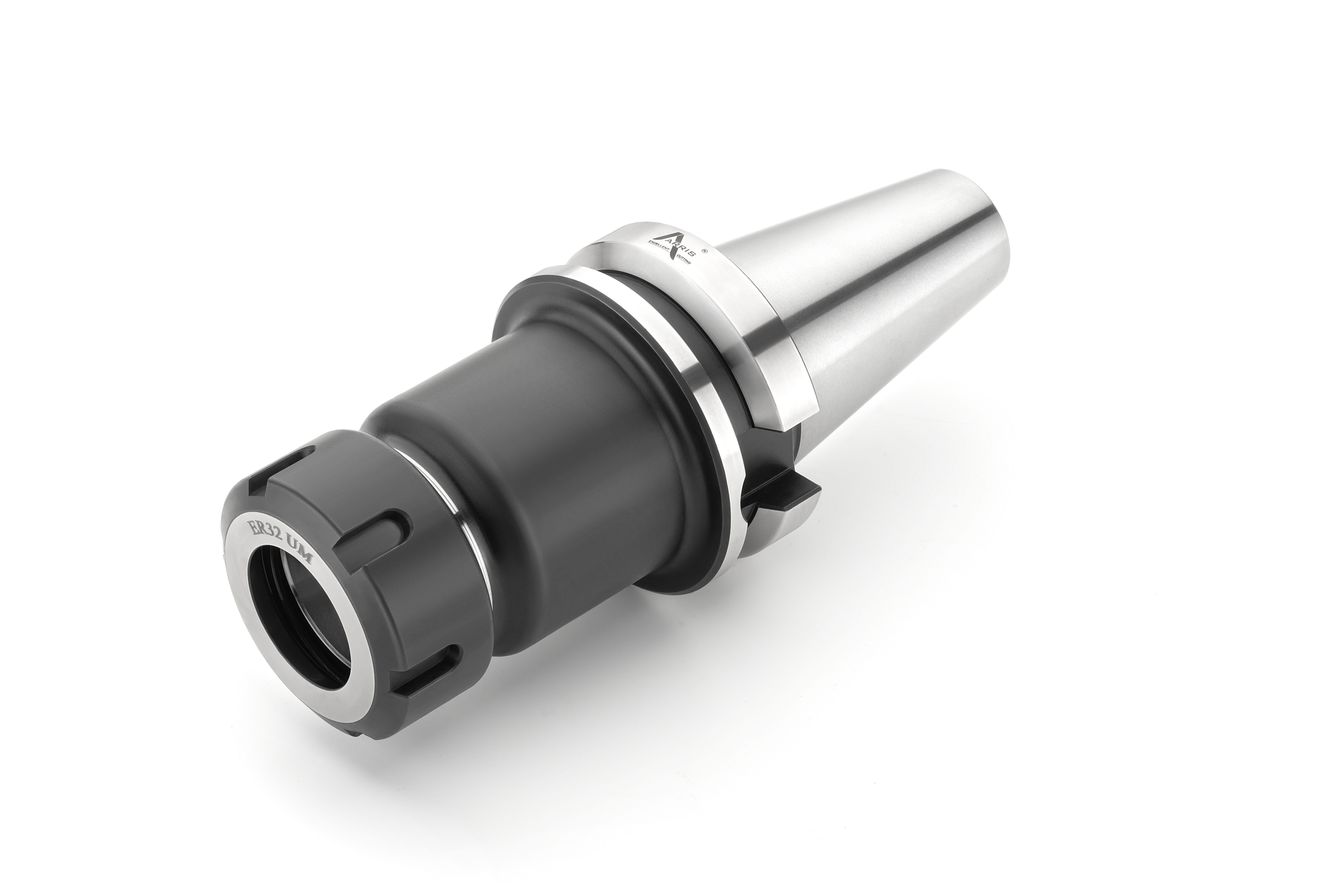

Manufacturing Process of Collet Chucks
State-of-the-art manufacturing process where every ER collet chuck passes through the following stages.
Forging
Transforming steel alloys into rough blanks.
Shaping
Utilizing subtractive manufacturing for initial geometry.
Carburizing
Applying heat treatment for optimal surface hardness.
Machining
Making precision cuts and ensuring tight tolerances.
Inspecting
Verifying for dimensional accuracy, surface hardness, tolerance, and balance.
Arris Tooling Collet Chuck Technical Specification
| Specification | Details |
|---|---|
| Material | Steel alloy |
| Length | 100-300 mm |
| Diameter (ɸD) | 19, 28, 34, 42, 50, 63 mm |
| Collet Sizes | ER 11, ER 16, ER 20, ER 25, ER 32, ER 40 |
| Nut | UM (round), A (hex) |
| Runout | <0.005 mm |
| Balance | G 2.5 @ 25,000 rpm (HSK only), G 6.3 @ 15,000 rpm |
| Shank Taper | HSK-A50/A63/A100, BT 30/40/50, ABT 40/50, SK 40/50, CAT 40, ISO 40/50. |
| Industry Standard | DIN 69893-1, DIN 69871, DIN 6499, DIN 2080, MAS 403, ANSI B5.50 |
Why Choose Arris Tooling as Your Preferred Collet Chucks Manufacturers?
Expertise
Manufacturing collet chucks for more than 17 years.
End-to-end Production
From samples to final product, producing everything under one roof.
Quality Control
Stringent quality control. ISO 9001 certified facility. Ensuring QC with HAIMER machines and precision gauges.
International Exporters
Currently exporting to countries in North America, Latin America, Europe, the Middle East, and Asia-Pacific.
Application and Usage of Collet Chucks
Collet chucks form the backbone of the CNC milling industry. Our collet chucks are deployed across multiple industries and play a key role in:
Automobiles
Key role in CNC machining centres; helps shape and finish components to achieve product-application fit.
General engineering
Multiple roles across the production process, from machining and grinding to drilling holes and milling, that help produce the product to industry standards.
Discuss your collet chuck requirements.
Speak with our experts to learn more about lead times, MOQ, and product-application fit.
