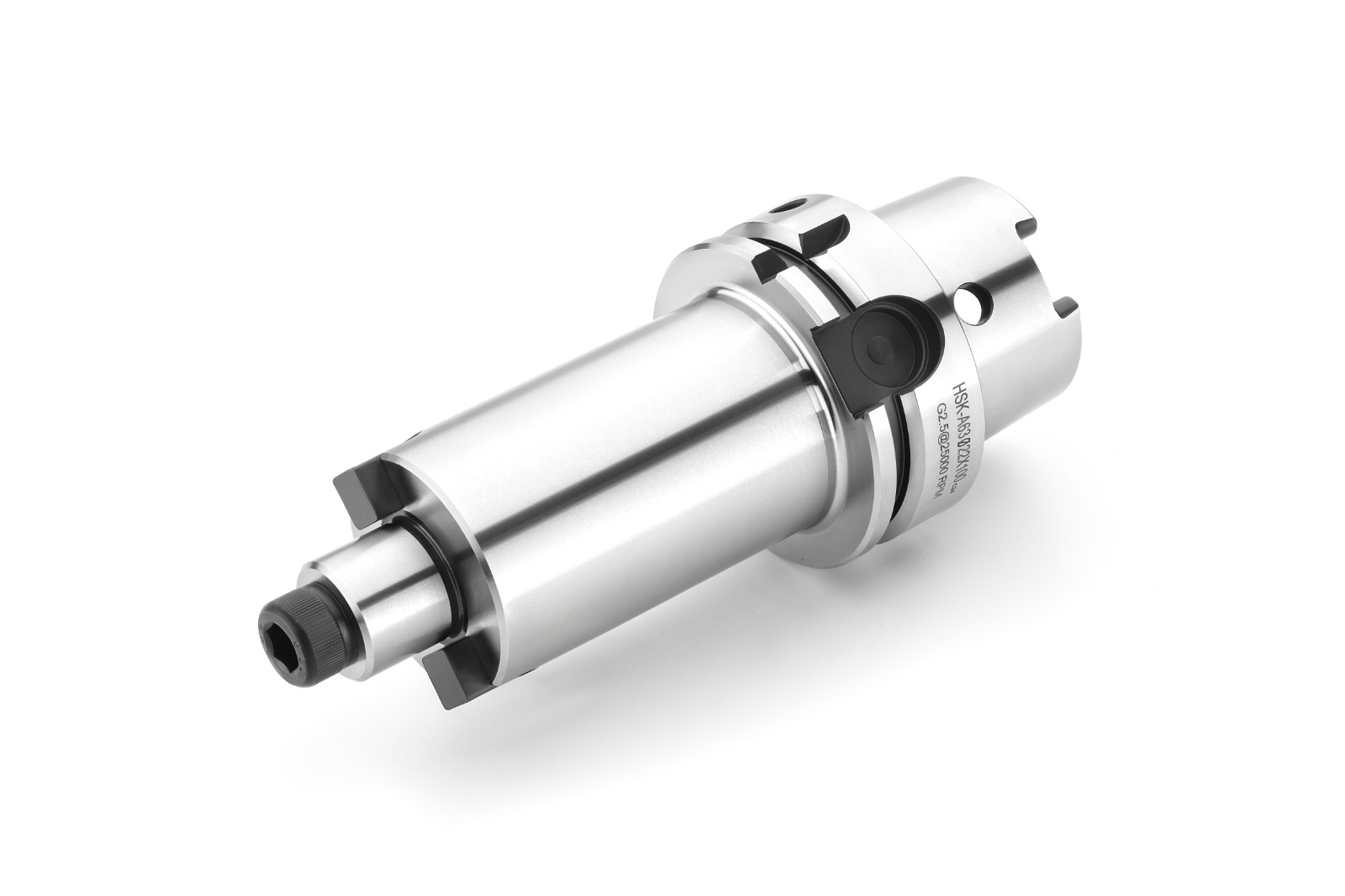

Face Milling Cutter Holder Manufacturer in India
Smooth surfacing in every pass
At Arris Tooling, we are a face milling cutter holder manufacturer in India, producing high-precision holders for seamless material removal and superior surface finish in demanding machining applications. With advanced manufacturing capabilities and industry expertise, we create face milling cutter holders suited for demanding applications.
We make our holders in a state-of-the-art facility, and each face milling cutter holder exhibits precise geometry, adequate surface hardness, and superior finish. We export our holders to manufacturing concerns in the US, the UK, Canada, Brazil, and the EU.
Arris Tooling’s face milling cutter holders have AT3 class tolerance, low runout, excellent balance, and come in a variety of shank interfaces. We also serve as a reliable face milling cutter holder supplier and exporter to global machining industries.
Manufacturing Process of Face Milling Cutter Holders
Our face milling cutter holders are engineered with precision-ground pilots and high-tensile drive keys. Their manufacturing process is as follows:
Forging
Converting high-grade steel alloy billets into foundational blanks.
Rough Cutting
Creating preliminary geometries and core dimensions.
Carburizing
Heat-treating to maximize structural hardness and surface toughness.
Machining
Refining components and providing excellent tolerances using 4th- and 5th-axis VMC machines.
Inspecting
Examining finished components using precision gauges and surface hardness testers to ensure compliance with industry standards.
The manufacturing process ensures we produce face milling cutter holders that are robust, support increased feed rates, and provide superior surface flatness.
Face Milling Cutter Holders Specification
| Specification | Details |
|---|---|
| Material | Steel Alloy |
| Length (mm) | 35, 40, 45, 50, 55, 60, 70, 80, 90, 100, 150, 200, 250, 300, 350 |
| Diameter (ɸD) (mm) | 19, 21, 24, 35, 45, 48, 52, 58, 63, 70, 78 |
| Bore (mm) | 16, 22, 27, 32, 40 |
| Runout (mm) | ≤0.005 |
| Balance | G2.5 @ 25,000 rpm |
| Shank Interface | HSK-A 63/100, BT 30/40/50, ABT 40/50, SK 40/50, CAT 40, ISO 40/50 |
| Industry Standards | DIN 6357, DIN 69893-1, MAS 403, ANSI B5.50 |
Why Choose Arris Tooling as Your Face Milling Cutter Holder Manufacturer
Proven Expertise
Over two decades of experience in manufacturing face milling cutter holders.
Precision Tooling
Using production intelligence and modern machinery to produce accurate geometry and maintain tooling exactness.
Efficiency Experts
AT3 class tolerance, G2.5 balance, and TIR ≤ 0.005 mm—our tools are engineered for enhanced performance at high speeds.
Global Presence
We export to industrial manufacturers in the US, the UK, Canada, and Brazil. Additionally, we supply to industries in the UAE, Saudi Arabia, Qatar, Japan, and Taiwan.
Application and Usage of Face Milling Cutter Holders
Face milling cutter holders are primarily used for creating flat surfaces with a high degree of finish. As such, they are used in a large number of industries, including:
Automobiles
Used for surfacing engine blocks, cylinder heads, and gearbox housings.
Aerospace
Machining large structural airframe components such as wing spars. Also used for hogging.
Die and Mold
Squaring up steel blocks to get them ready for engraving.
Power and Energy
Creating flange surfaces on wind turbine hubs and valves, which are often made from tough materials such as Inconel.
General Engineering
Playing a key role in CNC base plate manufacturing and producing industrial presses.
Discuss your face milling cutter holder needs
Learn more about lead times, MOQs, and custom solutions to meet your needs.
Request a Callback
