Weldon Tool Side Lock Holder Manufacturers in India
Accurate milling under high axial forces
Arris Tooling is a leading Weldon tool side lock holder manufacturers in India. Precision holders for BT, CAT, HSK & ISO interfaces. Custom solutions available. We manufacture side lock holders that work with Weldon flats across a wide range of interfaces. Industries such as automotive, aerospace, and heavy engineering rely on our side lock holders for their heavy-duty milling needs.
Arris Tooling serves global industries as a reliable Weldon tool side lock holder manufacturers, delivering precision tooling solutions for CNC machining centres. We export to these businesses in the US, the UK, Canada, the EU, and Brazil. We also supply to concerns in the UAE, Dubai, and Qatar, as well as those in Japan, Taiwan, and the rest of the Asia-Pacific.
Keep your tooling costs low by investing in durable Weldon tool side lock holders that maintain accuracy and prevent shank destabilization at high speeds.

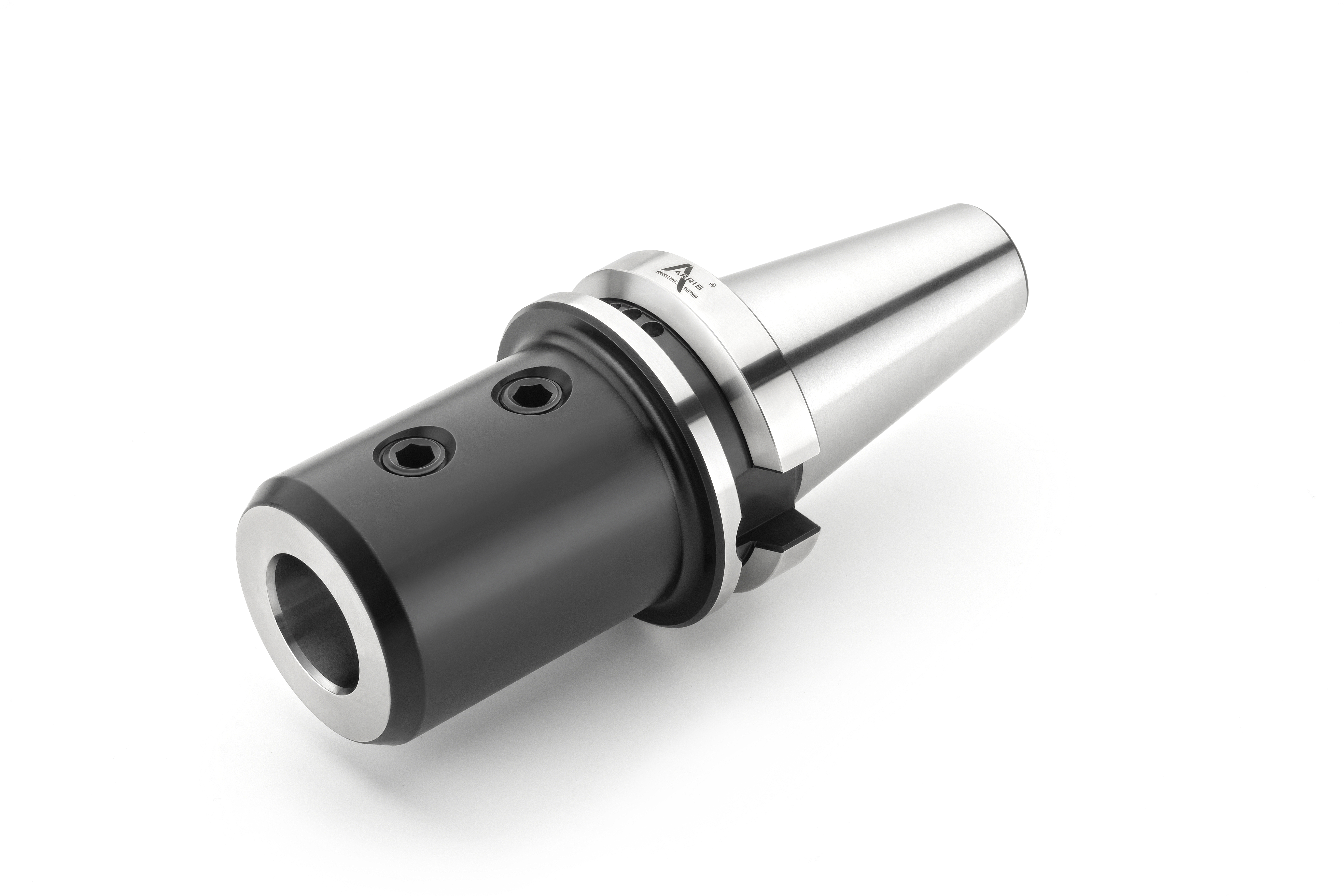

Manufacturing Process of Weldon Tool Side Lock Holder
Multi-stage manufacturing, where each Weldon tool side lock holder passes through the following steps:
Forging
Converting industry-grade steel alloy into production-ready blanks.
Rough cutting
Subtractive manufacturing to create initial geometry.
Carburizing
Heat treating Weldon tool side lock holders for optimal strength and durability.
Machining
Milling the rough-cut side lock holders on Studer machines and converting them into finished products.
Inspecting
Checking the final output against established internal and industry standards using modern machines and inspection systems in-house.
Weldon Tool Side Lock Holders Technical Data
| Specification | Details |
|---|---|
| Material | Steel Alloy |
| Length (mm) | 50, 63, 80, 90, 100, 105, 120, 150, 160 |
| Diameter (ɸD) (mm) | 35, 42, 48, 50, 52, 62, 62.3, 62.5 |
| Bore (mm) | 6, 8, 10, 12, 16, 20, 25, 32, 40 |
| Clamping Screw (G) | M6, M8, M10, M12, M16 |
| Runout (mm) | ≤0.005 |
| Balance | G 6.3 @ 15,000 rpm |
| Shank Taper | ISO 40/50, CAT 40, SK 40/50, ABT 40/50, BT 30/40/50, HSK A-63/A-100 |
| Industry Standards | DIN 2080, ANSI B5.50, DIN 69871, MAS 403 |
Why Choose Arris Tooling as Your Weldon Tool Side Lock Holder Manufacturers
Arris Tooling produces high-precision Weldon tool side lock holders built for stability, accuracy, and durability in demanding machining operations. Our production expertise and strict quality standards help us deliver reliable tooling solutions to customers globally.
Decades of Experience
We have worked as a precision side lock holder manufacturers for over two decades.
Centralized production
From prototype to production, all under one roof.
Quality control
Utilizing modern machinery and techniques such as Studer, HAIMER, and precision gauges to deliver quality output.
Export readiness
Exporting to multiple countries, including the US, the UK, Canada, Europe, Dubai, the UAE, and Qatar. Also shipping to businesses in Japan and across the Asia-Pacific.
Application and Usage of Weldon Tool Side Lock Holders
Weldon tool side lock holders, such as those manufactured by Arris Tooling, are widely used as CNC milling tool holders designed to work with shanks that have Weldon flats. Our holders are used in multiple industries, some of which are mentioned below:
Automobiles
Aiding the rough milling of engine blocks, transmission cases, and other large metal components.
Mold and die
Maintaining precision while removing large volumes of material from the mold.
Aerospace
Ensuring tool security and preventing pull-out at high speeds.
Heavy engineering
Reducing the risk of the shank tool spinning out at high speeds, as well as assisting in heavy-duty performance.
Discuss your Weldon tool side lock holder tooling needs
Connect with our specialists to learn more about prototyping, material choices available, production timelines, and custom solutions.
