Hydraulic Expansion Chucks Manufacturers in India
Finely engineered chucks for precision manufacturing
Hydraulic expansion chucks for high-speed machining environments that require exceptional balance, minimal runout, and vibrational dampening.
Arris Tooling is a hydraulic expansion chucks manufacturers with chucks boasting G 2.5 balance at 25000 rpm and runout below 0.003 mm. Manufacturing in India for 17 years; now exporting to the US, the UK, Europe, Canada, Brazil, the Middle East, Japan, and the rest of Asia-Pacific.

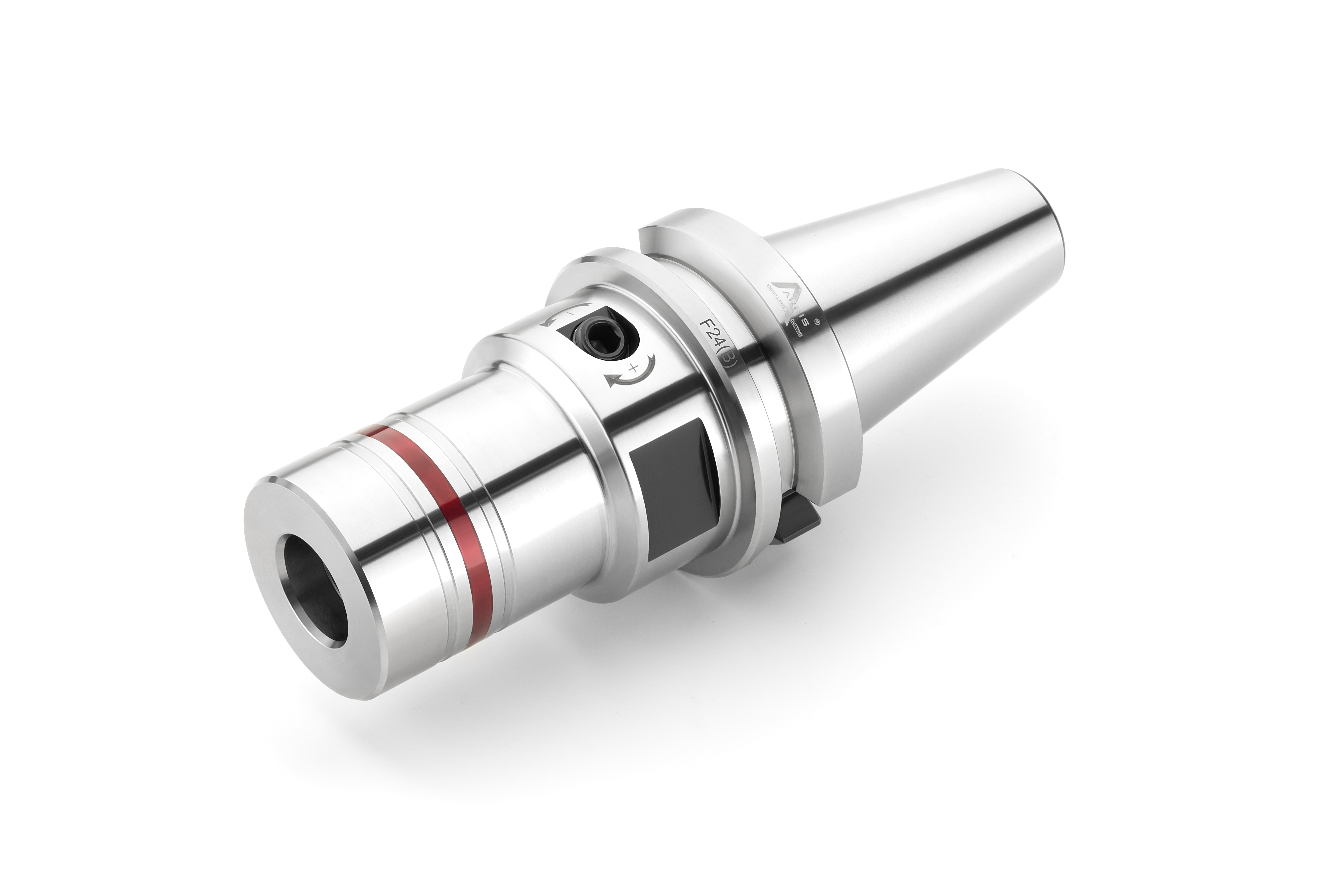

Manufacturing Process of Hydraulic Expansion Chucks
At Arris Tooling, we produce export-quality hydraulic expansion chucks in our ISO vetted facility. The production process passes through the following stages:
Forging
Our smiths create blanks by forging industry-grade stainless steel.
Rough cutting
Workers define the rough shape of the blank, taking away metal where required.
Carburizing
We place the rough-cut chucks into a furnace and then rapidly quench in oil to improve hardness.
Assembly and filling
We laser-weld the internal expansion sleeve and then fill the chamber with viscous hydraulic oil.
Machining
Our machinists use state-of-the art 4 and 5-axis mills to shape the final product, from taper to bore.
Inspecting
Engineers inspect the finished chucks for a range of attributes, from material strength and surface hardness to balance, fit, and vibrational dampening.
Arris Hydraulic Expansion Chuck Technical Specification
Key technical specifications of Arris hydraulic chuck include:
| Specification | Details |
|---|---|
| Material | Steel Alloy |
| Length | 50 mm-200 mm |
| Length adjustment | 10 mm |
| Speed | 25,000 rpm |
| Runout | <0.003 mm |
| Taper-to-shank | 0.005 mm |
| Balance | G 2.5 @ 25,000 rpm |
| Shank Taper | BT 30/40/50, ABT 30/40/50, HSK-A 50/63/100, SK 40/50 |
| Industry Standard | MAS 403, DIN 69893-1, ANSI B5.50, DIN 69871 |
Why Choose Arris Tooling as Your Hydraulic Expansion Chuck Manufacturers?
Expertise
More than 17 years of manufacturing excellent hydraulic expansion chucks that meet popular industry standards—BT, CAT, SK, and HSK.
Prototype Production
complete production under one roof.
Quality Control
We manufacture our hydraulic expansion chucks in our ISO certified facility. Additionally, we verify the finished chucks using HAIMER machines and precision gauges.
International Suppliers
Currently exporting to businesses in the US, the UK, Canada, Europe, the Middle East, Japan, and the rest of Asia-Pacific.
Application and Usage of Hydraulic Expansion Chucks
Hydraulic expansion chucks have a wide range of uses and applications. As a hydraulic expansion chuck manufacturer, our chucks find application in the following industries:
Automotive
Reduces cycle time in the manufacturing of engine, transmission, and brake components.
Aerospace and medical
Ensures tight tolerances and mirror-like surface finish in engine turbine blades and orthopedic implants.
General engineering
Helps reduce chatter in face milling, reaming, and drilling, and in other instances where precision and balance are critical.
Learn more about how hydraulic expansion chucks can fit your needs.
Let’s discuss lead times, production volume, and prototype design. We are a call away to answer all your queries!
