HSK Tool Holder Manufacturers in India
Precision milling for ATC-compatible CNC machines.
Arris Tooling is a trusted HSK tool holder manufacturers for businesses requiring quick tool changes without sacrificing precision milling at high speeds. Our HSK tool holders are manufactured using industry-grade steel alloy and designed to withstand wear and tear. With runout comparable to industry standards and a G2.5 balance, our HSK holders are designed to deliver consistent performance.
We are currently shipping to industrial hubs in the US, the UK, the EU, Canada, and Brazil. Additionally, we are exporting to businesses in the UAE, Saudi Arabia, Qatar, and Japan.
Prevent chatter and tool slippage at high speeds by investing in quality HSK-A tool holders and avoiding unforeseen expenditures.
Manufacturing Process of HSK Tool Holders
Arris Tooling is an HSK tool holder manufacturers with a wide range. While each product is manufactured a little differently, they usually pass through the following stages:
Forging
Creating production-ready blanks from steel alloy.
Rough cutting
Imparting initial geometry via subtractive processes.
Carburizing
Heat-treating the rough-cut components for material strength and adequate hardness.
Machining
Shaping the rough-cut HSK tool holders into finished products on multi-axis milling machines.
Inspecting
Checking the tool holders with HAIMER machines and precision gauges to ensure quality control.
HSK Tool Holders Technical Data and Specifications

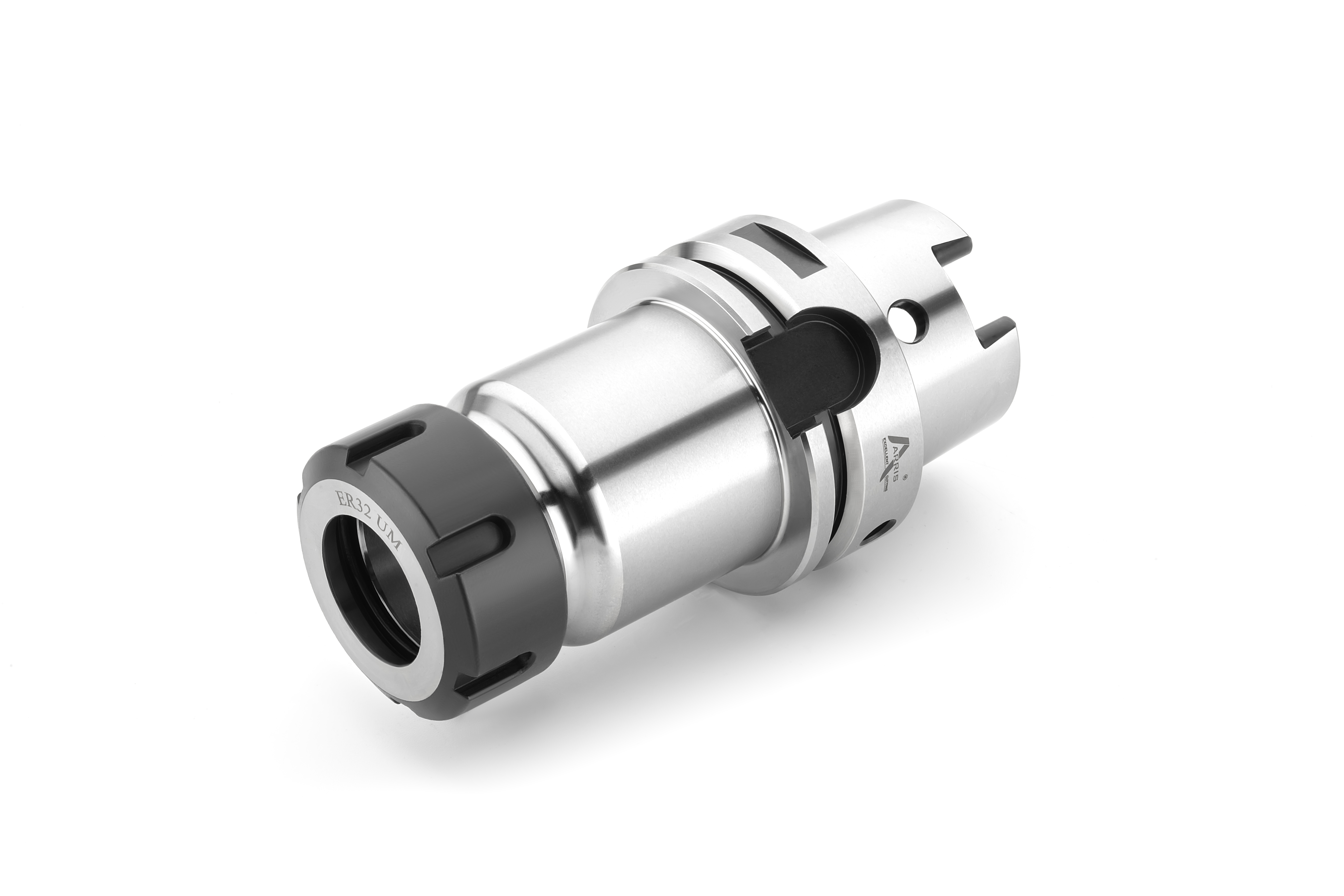

Collet Chuck HSK Tool Holder
| Specification | Details |
|---|---|
| Material | Steel-Alloy |
| Length (mm) | 100, 110, 160, 200, 250, 300 |
| Diameter (ɸD) (mm) | 28, 34, 42, 50, 63 |
| Suitable Collet (ER) | 16, 20, 25, 32, 40 |
| Runout (mm) | ≤ 0.005 |
| Balance | G 2.5 @ 25,000 rpm |
| Shanks | A-50, A-63, A-100 |
| Industry Standard | DIN 6499, DIN 89693-1 |
Face Mill Arbour HSK Tool Holder
| Specification | Details |
|---|---|
| Material | Steel-Alloy |
| Length (mm) | 50, 55, 100, 150, 200 |
| Diameter (ɸD) (mm) | 48, 58, 78 |
| Cutter Bore (mm) | 22, 27, 32 |
| Runout (mm) | ≤ 0.005 |
| Balance | G 2.5 @ 25,000 rpm |
| Shanks | A-63, A-100 |
| Industry Standard | DIN 6357, DIN 89693-1 |
Side Lock Arbour HSK Tool Holder
| Specification | Details |
|---|---|
| Material | Steel-Alloy |
| Length (mm) | 63, 80, 100, 120, 160 |
| Diameter (ɸD) (mm) | 25, 28, 35, 42, 48, 50, 52, 62 |
| Clamping Screw (G) | M6, M8, M10, M12, M16 |
| Runout (mm) | ≤ 0.005 |
| Balance | G 2.5 @ 25,000 rpm |
| Shanks | A-63, A-100 |
| Industry Standard | DIN 1835-B, DIN 89693-1 |
Morse Taper Adapter HSK Tool Holder
| Specification | Details |
|---|---|
| Material | Steel-Alloy |
| Length (mm) | 100, 115, 135, 160 |
| Diameter (ɸD) (mm) | 26, 32, 40, 48 |
| Morse Taper (MT) | 1, 2, 3, 4 |
| Runout (mm) | ≤ 0.005 |
| Balance | G 2.5 @ 25,000 rpm |
| Shanks | A-63 |
| Industry Standard | DIN 6383, DIN 89693-1 |
Morse Taper Adapter HSK Tool Holder
| Specification | Details |
|---|---|
| Material | Steel-Alloy |
| Length (mm) | 160, 250 |
| Diameter (ɸD) (mm) | 63, 80 |
| Runout (mm) | ≤ 0.005 |
| Balance | G 2.5 @ 25,000 rpm |
| Shanks | A-63, A-100 |
| Industry Standard | DIN 89693-1 |
Why Choose Arris Tooling as Your HSK Tool Holder Manufacturers
Arris Tooling is trusted by global buyers looking for reliable HSK tool holder manufacturers capable of delivering high precision CNC tooling.
Industrial experience
HSK tool holder manufacturers for a decade and counting.
Centralized production
From creating the first article to production at volume, all under one roof.
Quality control
Excellent quality control at the production stage (Studer and HAIMER machines) and the final inspection stage (taper gauging, X-rays, and dye penetrant).
Export readiness
Exporting HSK tool holders to industrial partners globally, including the US, the UK, the EU, and Canada. We are also shipping to businesses in Latin America, the Middle East, and the Asia-Pacific.
Application and Usage of HSK Tool Holders
HSK-type tool holders are sought after for their multiple benefits. At Arris Tooling, we manufacture HSK-A type tool holders, which are popular in the following industries:
Automobiles
Compatibility with Automatic Tool Changers (ATC), resulting in lower turnaround times in assembly lines and machine shops.
Aerospace
Making it possible to achieve heavy-duty milling with a high degree of precision (HSK A-100).
Medical devices
A critical component in creating medical implants (bone joints) because of HSK’s tight tolerances and mirror finish.
5-axis milling
Permitting complex milling angles while preventing tool slippage.
High-speed machining
Preventing Z-axis inaccuracies and limiting chatter.
Discuss your HSK tool holder requirements
Learn more about prototyping availability, MOQ, lead times, and custom solutions.
Request a CallbackFrequently Asked Questions (FAQs)
- Always wipe the taper with a lint-free cloth before and after use
- Store the HSK tool holders in a case or in separate racks to prevent nicks on precision surfaces
- Check for ‘fretting’ regularly (small bronze-colored marks)
