Shrink-Fit Holder Exporter and Manufacturer
Consistent chatter-free milling at high speeds
At Arris Tooling, we are a leading shrink-fit holder exporter and manufacturer in India, supplying high-precision tool holders for high-speed machining. Our shrink-fit holders are widely used across aerospace, medical, mold & die, and automotive industries worldwide.
We supply to businesses in the US, the UK, Canada, Brazil, and European Countries. Furthermore, we sell to companies and manufacturers in the UAE, Saudi Arabia, Oman, Japan, and Taiwan.
With G2.5 balance and a very low TIR, our shrink-fit holders are an excellent investment for manufacturing concerns looking for durable milling solutions.

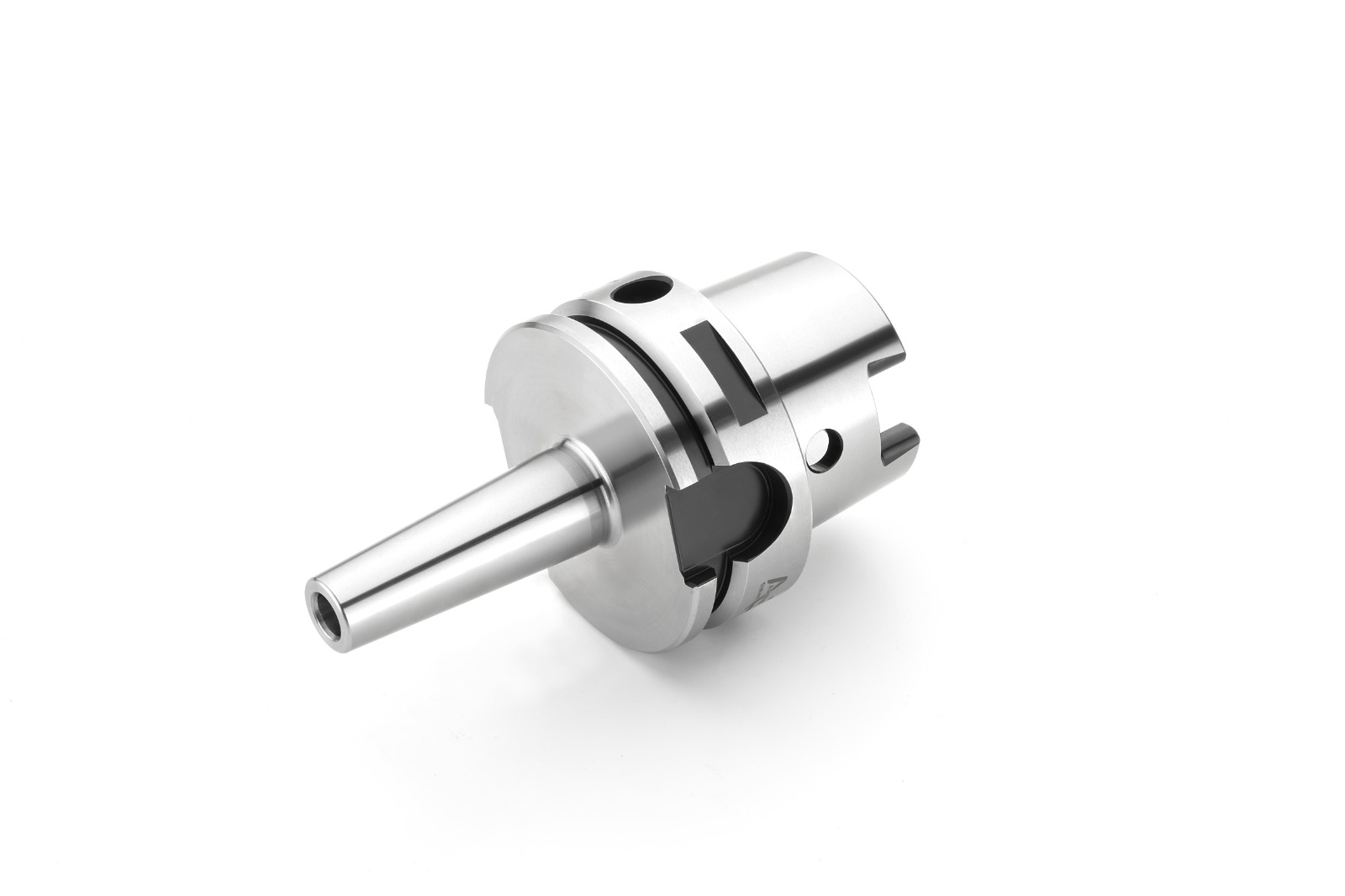

Manufacturing Process of Shrink Fit Holders
Our shrink-fit holders are the product of a robust manufacturing process, which includes the following steps:
Forging
Transforming steel alloys into hogging-ready blanks.
Rough Cutting
Imparting a basic geometry to the blanks for further refinement.
Carburizing
Heat-treating the rough-cut shrink-fit holders to increase their material strength.
Machining
Using state-of-the-art VMC machines to create precise shapes and excellent tolerance.
Inspecting
Checking the machined shrink-fit holders for accuracy using precision gauges and roughness testers to ensure compliance with industry standards.
Shrink Fit Holders Technical Data and Specifications
| Specification | Details |
|---|---|
| Material | Steel Alloy (H13) |
| Length (mm) | 90-120 |
| Diameter (ɸD) (mm) | 12, 14, 16, 18, 20, 21, 22, 24, 27, 33 |
| Bore (mm) | 6, 8, 10, 12, 14, 16, 20 |
| Runout (mm) | ≤0.005 |
| Balance | G2.5 @ 25,000 rpm |
| Shank Interface | HSK-A 50/63/100, BT, SK, CAT |
| Industry Standards | DIN 69893-1, ANSI B5.50, DIN 69871, MAS 403 |
Why Choose Arris Tooling for Shrink Fit Holders
As a trusted shrink fit holder exporter and manufacturer, Arris Tooling is committed to delivering precision-engineered solutions that meet global machining standards. Our focus on quality, consistency, and customer satisfaction makes us a preferred partner for industries worldwide.
Industrial experience
Shrink-fit tool holder manufacturer for more than a decade.
Centralized production
From concept to creation in the same facility.
Quality control
Multiple checks using industry-vetted machinery and processes (Studer and HAIMER) to ensure compliance with design and application standards.
Export readiness
Exporting shrink-fit tool holders to businesses worldwide, including the US, the UK, the EU, and Canada. We are also shipping to companies in Brazil, the UAE, Saudi Arabia, Japan, and Taiwan.
Application and Usage of Shrink Fit Holders
Shrink-fit holders are popular for their rigidity and zero margin of error. They are mainstays in several industries, including:
Aerospace
Used in carving out large blocks of inconel and titanium while lowering vibration and chatter.
Die and Mold
The 3° nose variant is especially popular because the narrow nose profile allows it to sit better into the mold to carve intricate geometries.
Medical Tools
Shrink-fit holders are used to manufacture medical implants and surgical tools for their vibration-dampening feature and excellent rigidity.
Automobiles
Used in carving certain engine and transmission components. Tight tool fit ensures accuracy and consistent concentricity.
General Engineering
Shrink-fit holders find diverse applications in machine shops, especially with the HSK interface in high-speed milling.
Discuss your shrink-fit holders export needs
Get in touch with us to learn more about delivery timelines, material choices, and customization options.
Request a CallbackFrequently Asked Questions (FAQs)
Do not heat the holder beyond the recommended temperature, and do not quench a hot holder into cold water. Always dry your holder after use, keep it upright, and away from other metal objects to avoid chipping.
